The Evolution of Antennas: From TV to Modern Wireless Technology

Antennas are a remarkable technology that converts signals from tangible wires into invisible waves, playing a vital role in our daily lives. From digital television, radio, navigation, and radar to modern wireless devices like smartphones, antennas are everywhere.

Looking back, early televisions required large outdoor antennas. Over time, these evolved into smaller “rabbit ear” dipole antennas placed on top of TV sets or outdoor-mounted “little ear” satellite dish and Yagi antennas. With advancements in technology, compact digital antennas emerged, seamlessly integrating into devices. Today, we can enjoy seamless access to programming thanks to signals transmitted across a wide range of frequencies and the rapid development of wireless technology. This is the core technology of antenna.

Antennas are used extensively in our daily routines, enabling technologies such as electronic payments, NFC, and smart home appliances. Depending on the application, antenna size, shape, and materials can vary greatly. Whether its directional antennas or omnidirectional antennas, each type serves a specific purpose.

In this article, we’ll explore common types of antennas and their operating principles, breaking down this increasingly important technology into simple terms. Stay tuned to learn how antennas continue to shape our connected world!

How Antennas Work

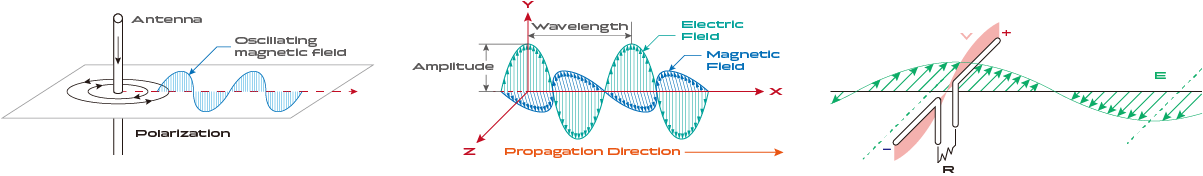

When transmitting signals, the oscillating current in an antenna generates alternating electromagnetic fields, these fields radiate outward as electromagnetic waves. Wireless electromagnetic waves travels through vacuum at the speed of light, launching in all directions. When receiving signals, the antenna captures these waves and converts them into voltage or current signals. This process is applicated to technologies like GPS navigation, automotive navigation, and satellite navigation systems.

Proper installation and adjustment of antennas are crucial for optimizing signal reception and ensuring stable signal transmission.

Types of Antennas

Dipole

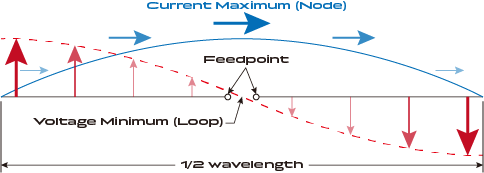

The dipole antenna is one of the earliest, simplest, and most widely used types in wireless communication and broadcasting. It consists of a pair of symmetrical conductors, with a length equal to half the wavelength of the operating frequency.

Features of Dipole
Omnidirectional｜Uniformly radiates signals in the horizontal plane.
Simple Structure｜Easy to construct with stable functionality.

Related Products: Embedded Antenna – PCB

Monopole Antenna

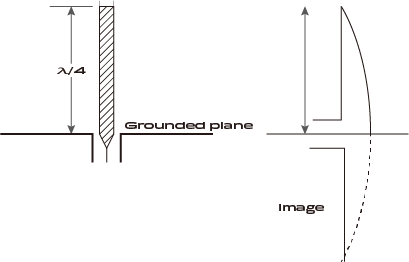

The monopole antenna is typically a vertically standing metal rod or wire mounted on a ground plane. Its length is one-quarter of the operating frequency's wavelength. By using the ground plane to reflect signals, it simulates a complete dipole antenna. With advantages such as wide directivity and compact size, it is ideal for space-constrained applications.

Features of Monopole
Compact Size｜Requires only one-quarter wavelength for operation, making it suitable for devices with limited space.

PIFA Antenna

A Planar Inverted-F Antenna (PIFA) consists of a rectangular metal plate and a vertical shorting pin. Its length is one-quarter of the operating frequency's wavelength. The PIFA design is compact, making it ideal for integration into smart devices like smartphones and tablets.

Features of PIFA
Compact Design｜PIFA antennas are typically small and can be printed on circuit boards, making them suitable for space-constrained applications such as mobile phones and other portable devices.
Radiation Pattern｜Generally provides omnidirectional radiation, ensuring consistent signal coverage.

Related Products: Embedded Antenna - Metal Parts

Antenna Array

An antenna array combines multiple antennas to achieve higher gain and improved performance.

Features
High Directivity and Gain｜Enhances signal strength or reception range in specific directions, making it ideal for targeted communication needs.

Related Products: Small Cell Base Station Antenna

Antennas: The Invisible Backbone of Everyday Life

In the unseen world of electromagnetic waves, antennas transcend the limitations of physical wiring and bridge vast distances. They transmit countless signals that underpin modern communication and innovation. From basic communication needs to cutting-edge technology, antennas have not only enhanced our quality of life but also reshaped how we work and socialize. With the rapid development of 5G, IoT, and autonomous driving technologies, antennas will play a pivotal role in our future lives.

Our Service: Antenna Design Solutions

Navigation and Radar｜In satellite navigation, GPS systems, and automotive navigation, antennas ensure accurate signal reception. They support navigation and radar systems for aviation, automotive, maritime, and military applications, driving advancements in smart transportation and autonomous vehicles.
Communication｜Antennas are indispensable in mobile phones, wireless networks, and satellite communications. Their diverse applications enhance signal strength and enable stable digital signal transmission, ensuring seamless connectivity in our modern lives.

Your Premier Partner for Professional Antenna Integration Design

Wanshih Electric offers customized antenna design services for a wide range of applications. Whether improving wireless transmission performance or meeting product ID adaptability needs, our solutions ensure smoother connectivity for your smart devices. For more information on antenna design and signal reception solutions, feel free to contact us at sales@wanshih.com
